If the label prints too small, the paper size of the printer should be adjusted:

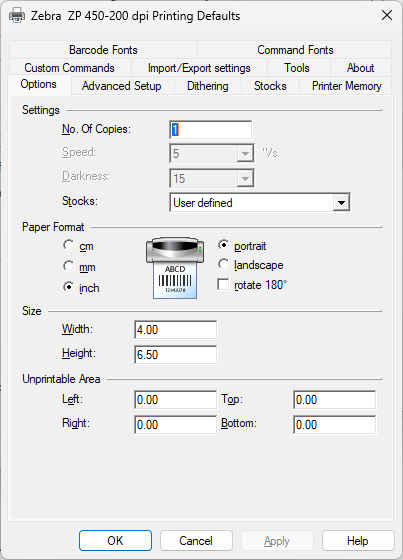

Settings - Printers & Scanners - Zebra - Printer Properties - Advanced - Printing Defaults:
Also:

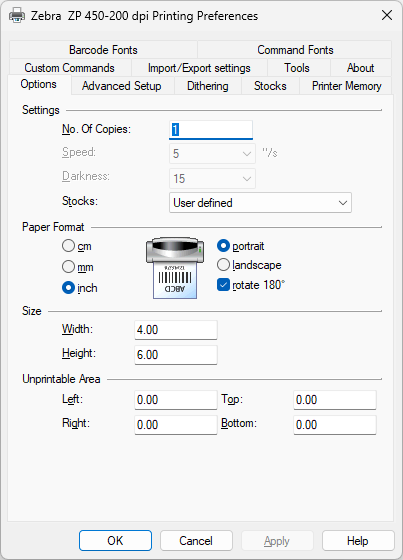

Settings - Printers & Scanners - Zebra - Printer Preferences:
For ZPL Mode:
See this page on how to run a TEST by downloading the file: LABEL.ZPL
https://labelary.com/viewer.html
This shows how to send the file to the printer:
https://supportcommunity.zebra.com/s/article/Sending-ZPL-Commands-to-a-Printer?language=en_US
1. Go to Settings - Devices - Printer - Printing Preferences
2. Go to the Tools tab and click Send File.
3. Enter file and click SEND.
For ZPL Mode in Mac OS:
https://supportcommunity.zebra.com/s/article/Print-txt-files-with-ZPL-code-MAC?language=en_US
Here's other articles that discuss label size:
https://www.lexicontech.com/resources/blog/navigating-label-issues-how-to-ensure-your-zebra
https://help.mainfreight.com/global/en/home/freman-05-printing/troubleshooting/kb5027.aspx
